Laser Diode Driver (CB26184E)

Details
Written by: Newton C. Braga

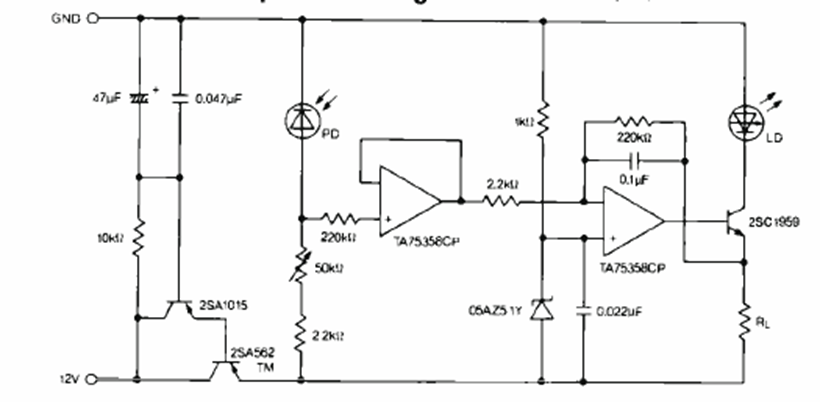

This is the application note circuit of the integrated circuit used with the LASER diode. The circuit was obtained from the Electronics Experimenter's Handbook of 1992.




| Clique na imagem para ampliar |
