18W Bridge Amplifier (CB26272E)

Details
Written by: Newton C. Braga

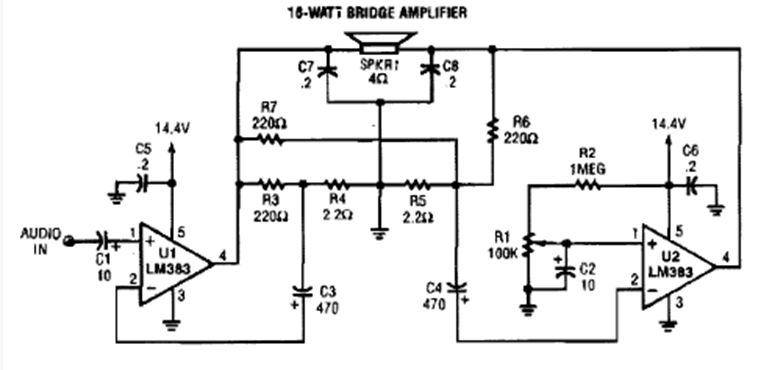

Using the LM383 this circuit was found in a Popular Electronics from the 90s. The source must be 14V and the integrated circuits must have good heat sinks.




| Clique na imagem para ampliar |
