9 V and 1.5 V battery test (CB24457E)

Details
Written by: Newton C. Braga

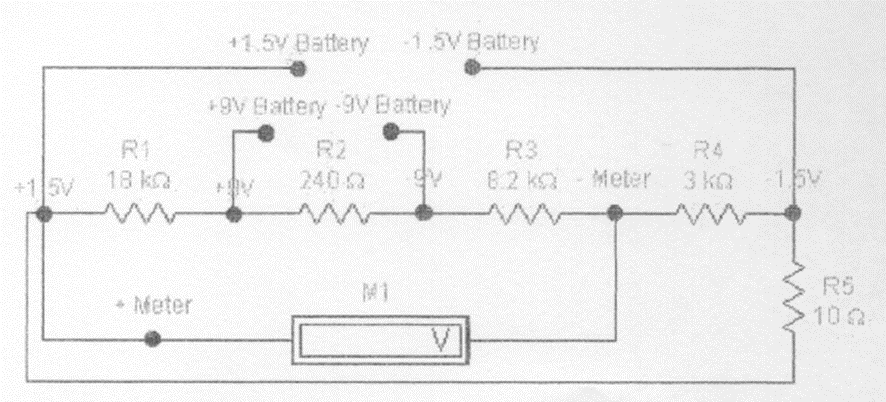

We found this circuit in documentation from the 90s. Instead of a voltmeter, you can use the voltage scale of a multimeter. The circuit tests batteries under load.




| Clique na imagem para ampliar |
