Long Period Timer (CB26097E)

Details
Written by: Newton C. Braga

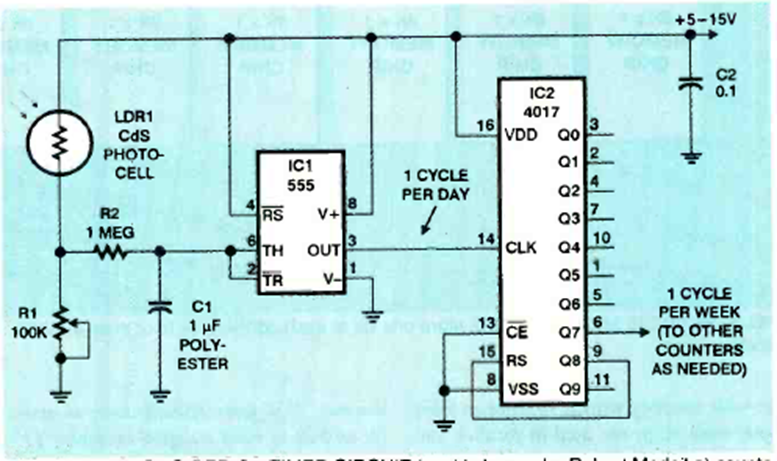

This circuit uses sunrise and sunset as a synchronization signal. The circuit is from Electronics Now magazine from May 1999. The cycle is one pulse per week.




| Clique na imagem para ampliar |
