Guitar Fuzz (CB26213E)

Details
Written by: Newton C. Braga

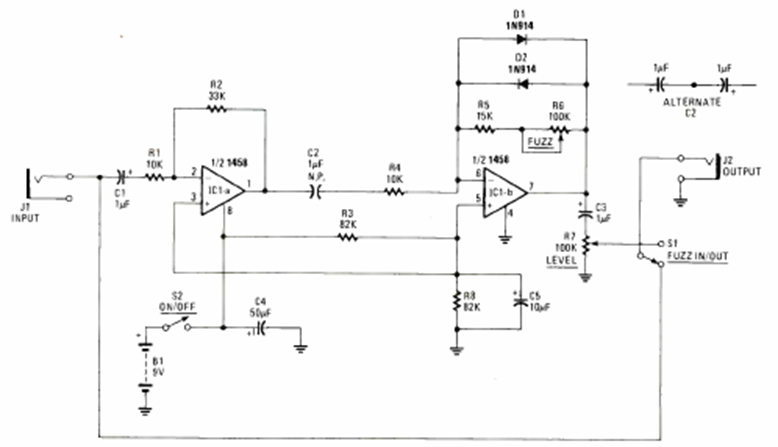

This common circuit using operational amplifiers was found in the 1993 issue of Radio Electronics Special Projects. The circuit is sandwiched between the pickup and the amplifier input.






| Clique na imagem para ampliar |
