CMOS Inverter Oscillator (CB25024E)

Details
Written by: Newton C. Braga

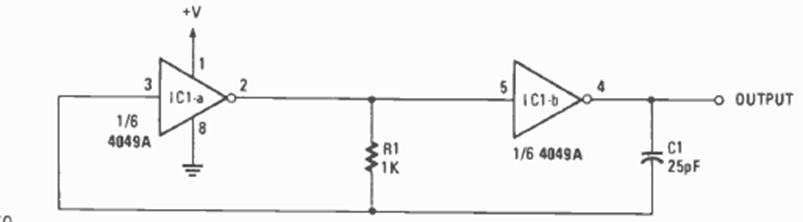

This is one of many configurations of this type that can be found on our website. The circuit uses two inverters and has the frequency determined by capacitor C1.
