Thermistor Control (CB25082E)

Details
Written by: Newton C. Braga

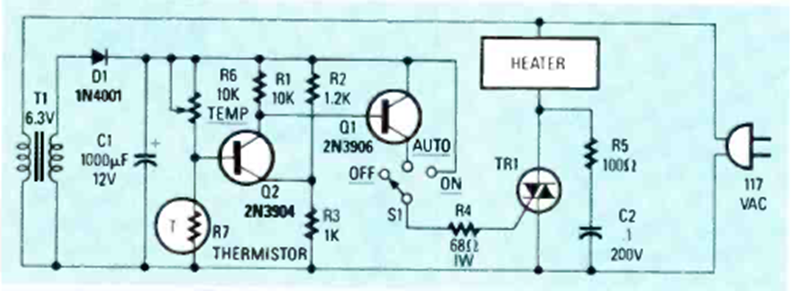

This circuit was obtained from Radio Electronics magazine, October 1987. The circuit uses a triac to control the heating element current. The transistors are general purpose.




| Clique na imagem para ampliar |
