Triple DC Motor Control (CB26035E)

Details
Written by: Newton C. Braga

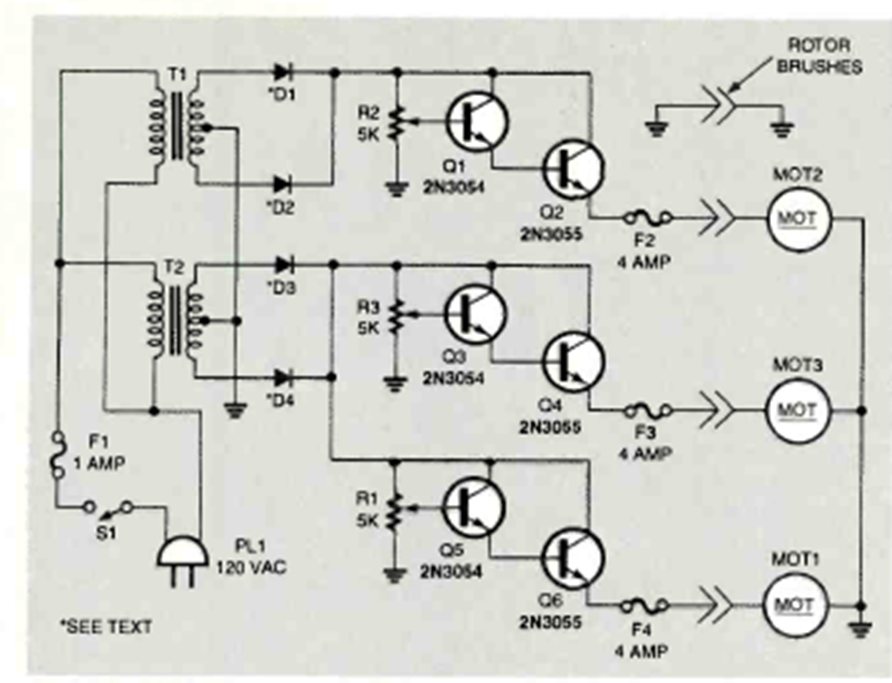

This circuit for controlling a model of an elevator via wire was found in the December 1997 issue of Electronics Now magazine. DC motors must be rated at the voltage of the transformers.
