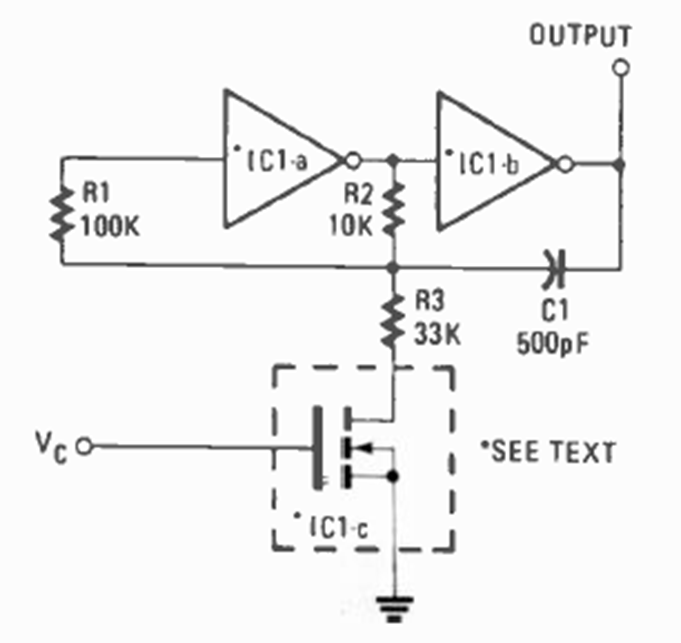

This circuit shows that we can implement a voltage-controlled oscillator with almost any CMOS that can be connected as an inverter. The circuit is from Radio Electronics from January 1987.
| Clique na imagem para ampliar |
VCO with inverters (CB25023E)
