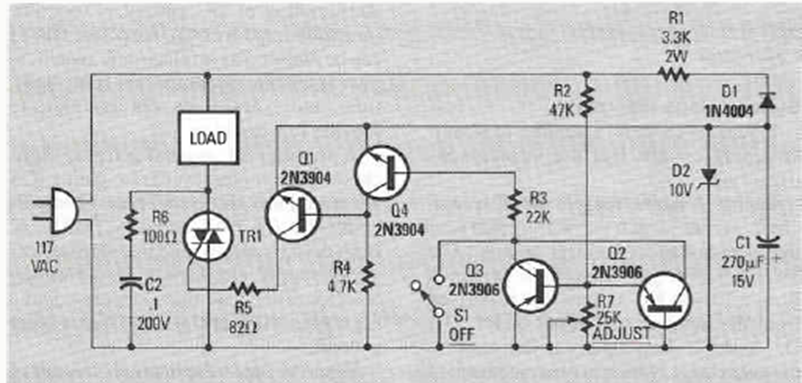

This circuit turns off when switch S1 is opened. The circuit is from the 1989 Radio Electronics Experimenter edition; The triac must be controlled according to the load.
| Clique na imagem para ampliar |
Triac Switch (CB26128E)
- Details
- Written by: Newton C. Braga
