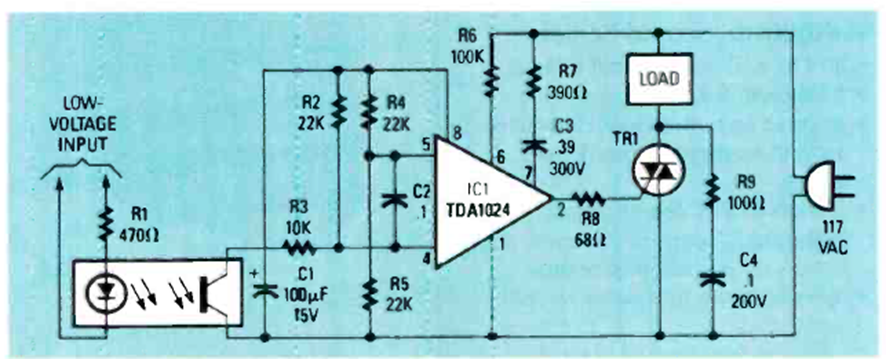

We found this circuit in the October 1987 Radio Electronics magazine. The circuit uses an integrated component of the time. The SCR must be rated according to the load and mounted on a heat sink.
| Clique na imagem para ampliar |
Shield for triac with TDA1024 (CB25080E)
- Details
- Written by: Newton C. Braga
