Signal Booster (CB25973E)

Details
Written by: Newton C. Braga

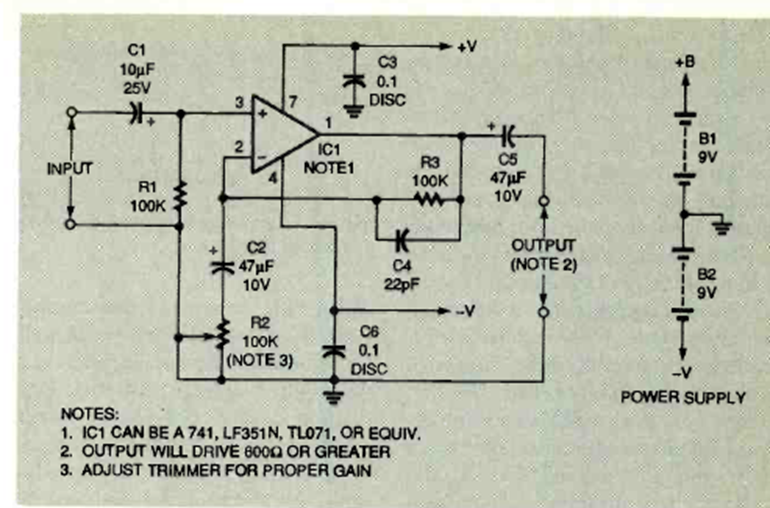

This circuit was found in the August 1996 Electronics Now magazine. The circuit is based on an operational circuit whose type determines the gains and limits for the frequency.
