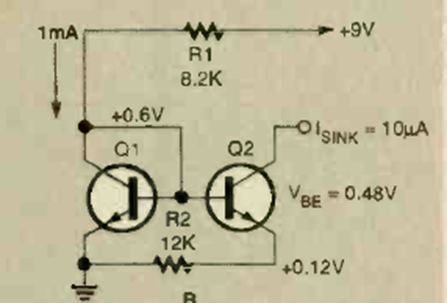

This circuit consists of a current mirror that produces a constant current of 10 uA. The circuit was found in the November 1998 issue of Electronics Now magazine.
10 uA Stable Current Reference (CB26078E)
- Details
- Written by: Newton C. Braga
This circuit consists of a current mirror that produces a constant current of 10 uA. The circuit was found in the November 1998 issue of Electronics Now magazine.
