Negative Ion Generator (CB26210E)

Details
Written by: Newton C. Braga

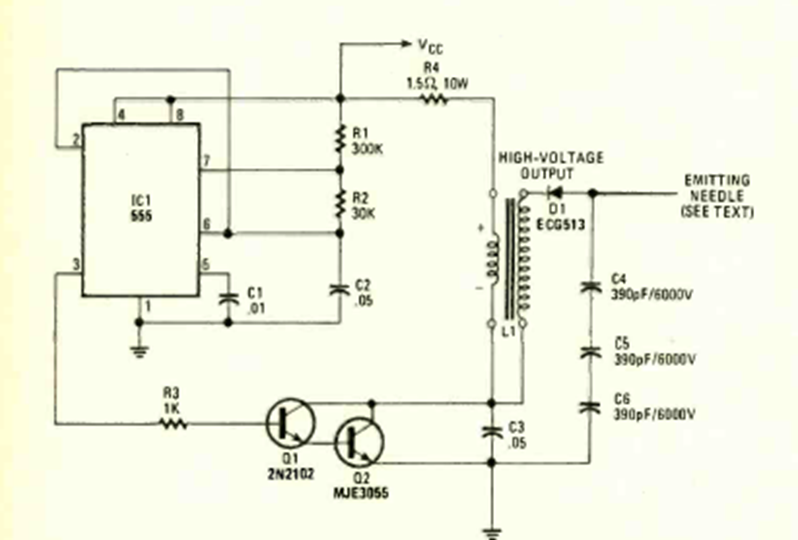

This simple circuit uses a car ignition coil. The circuit appeared in the 1983 Radio Electronics Annual Edition. The circuit supports equivalent transistors.




| Clique na imagem para ampliar |
