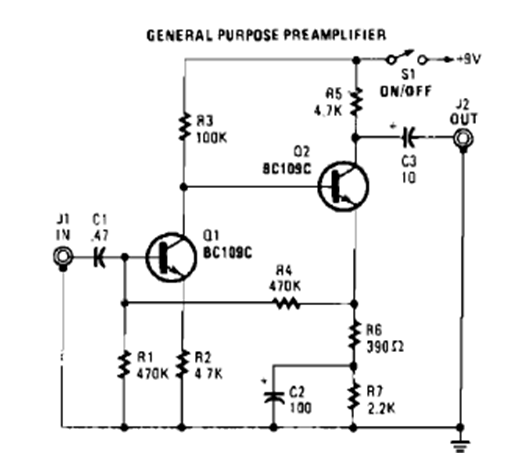

Found in the Encyclopedia of Electronic Circuits Volume 5 of 1995 this circuit has the gain determined by R4 and R6 which can be changed. The transistors are general-purpose.
General Purpose Preamplifier (CB26257E)
- Details
- Written by: Newton C. Braga
