Current Mirror (CB26077E)

Details: Written by: Newton C. Braga

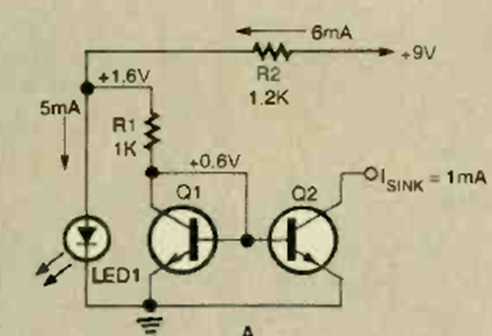

This circuit provides an extremely stable, temperature-compensated reference current. The circuit is from an article in Electronics Now magazine, November 1998.
