RF Wattmeter (CB26093E)

Details
Written by: Newton C. Braga

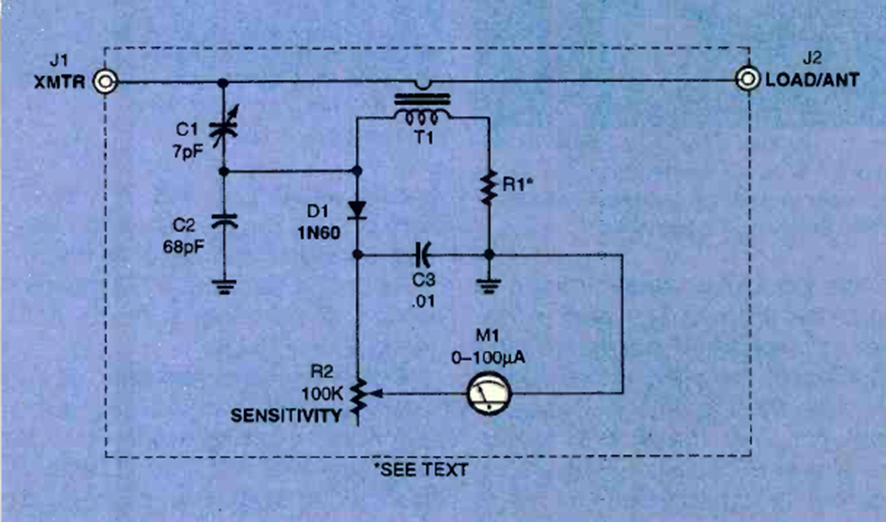

This transmitter power meter was found in the March 1999 issue of Electronics Now magazine. The circuit uses an analog indicator and does not require a power supply.




| Clique na imagem para ampliar |
