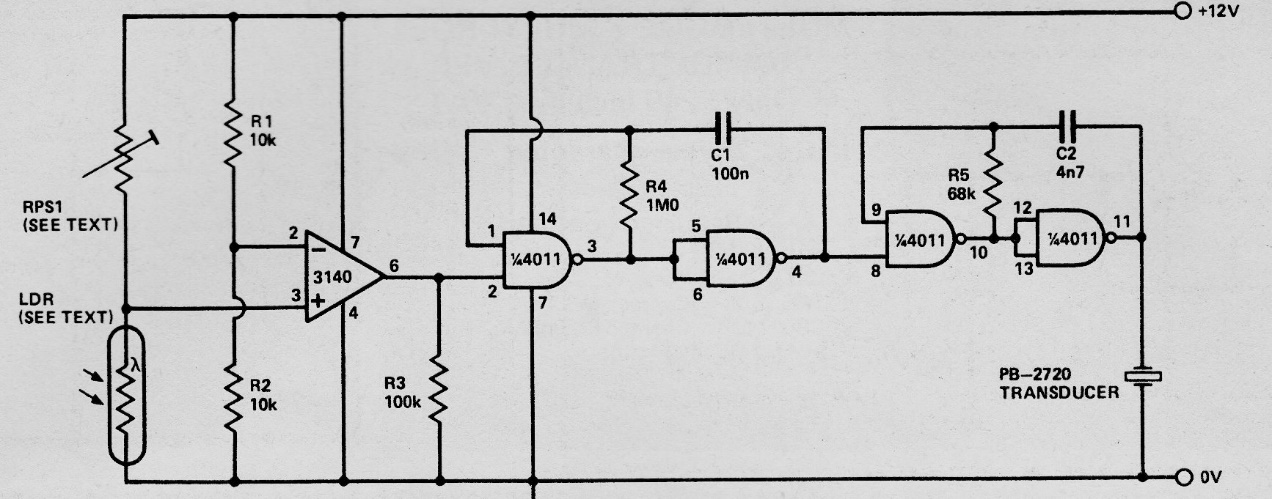

This circuit was found in an English publication of 1982. The operational can be replaced by an equivalent and the adjustment trimpot can be between 47k and 470k depending on the intensity of the light in the operating environment. The transducer is a piezoelectric capsule, and the supply can be made with voltages from 6 to 12 V, without problems. The sensor is an LDR of any type.
