3 to 5 V Amplifier (CB26110E)

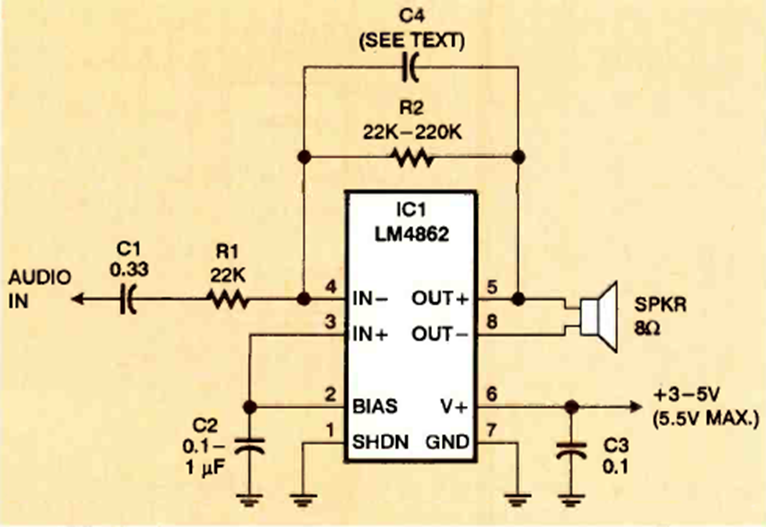

This small amplifier with the fraction-watt LM4862 was found in the November 1999 issue of Electronics Now. The power supply is low voltage.

| Clique na imagem para ampliar |
