Indicator for previous tachometer (CB25052E)

Details: Written by: Newton C. Braga

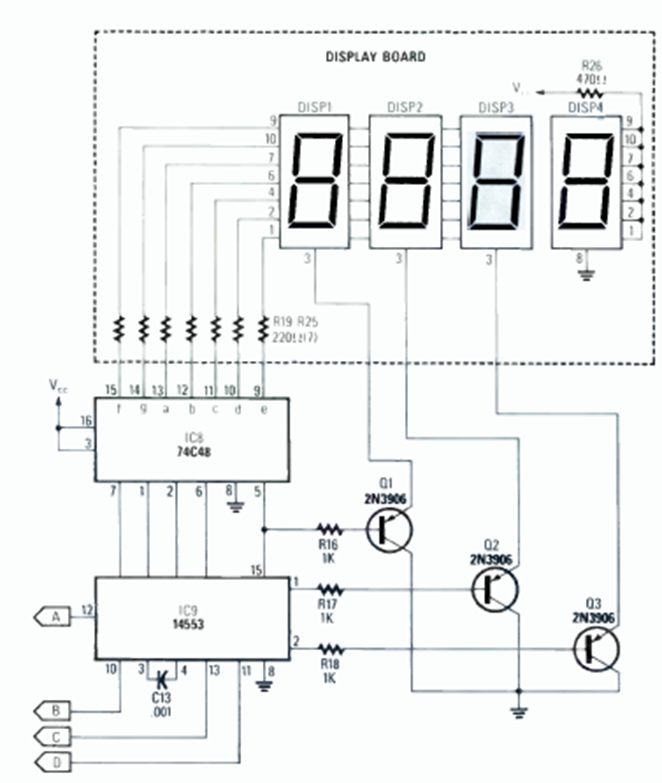

This circuit is the digital indicator for the previous circuit and can be used with similar circuits. The circuit is from an article in Radio Electronics magazine, June 1987.
