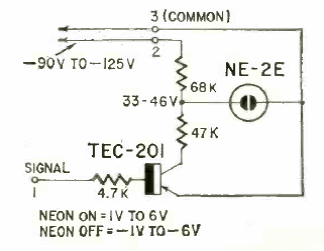

This simple transistor circuit is from a 1950s publication. There were no LEDs at that time so an ingenious neon lamp voltage divider was used to allow mains power. The voltage divider left the lamp on the firing threshold.
Miniature Indicator (CIR22515E)
- Details
- Written by: Newton C. Braga
