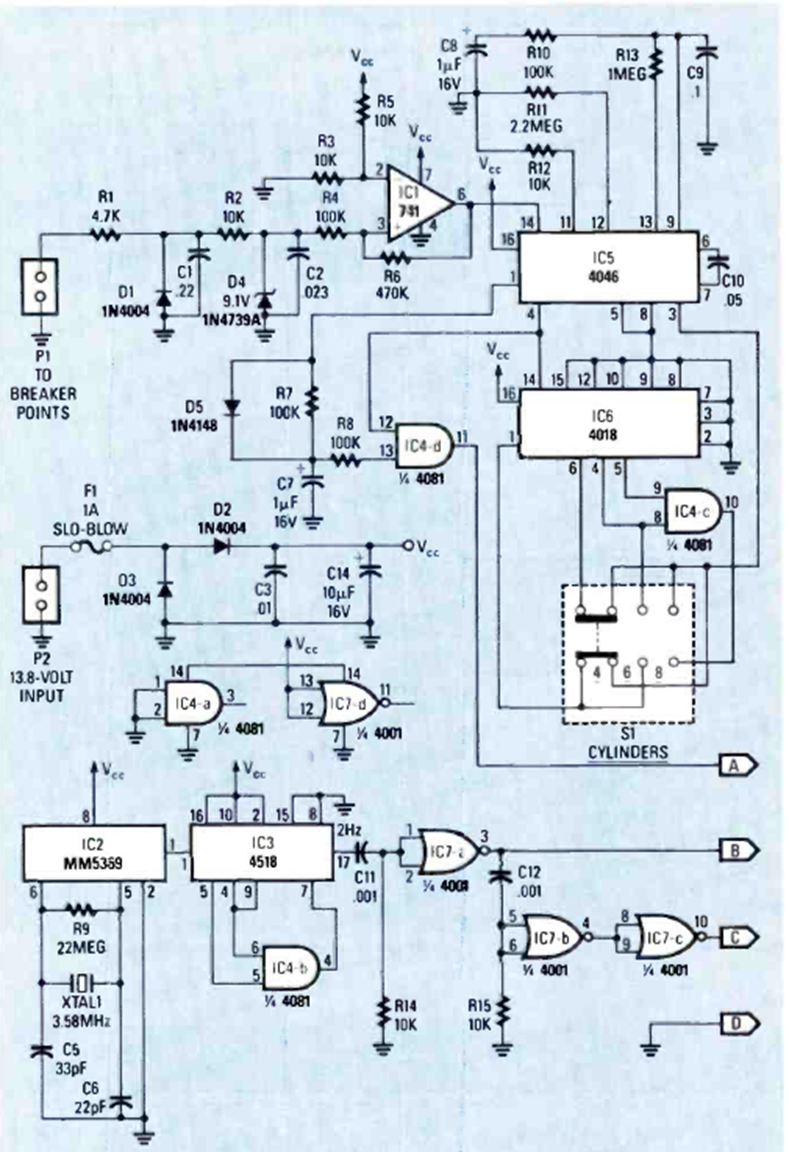

The assembly of this circuit was described in an article in the magazine Radio Electronics of June 1987. The CMOS integrated circuits are of types that can still be found. The indicated outputs go to an indicator circuit that is given below.
