Temperature Sensor (CB26206E)

Details
Written by: Newton C. Braga

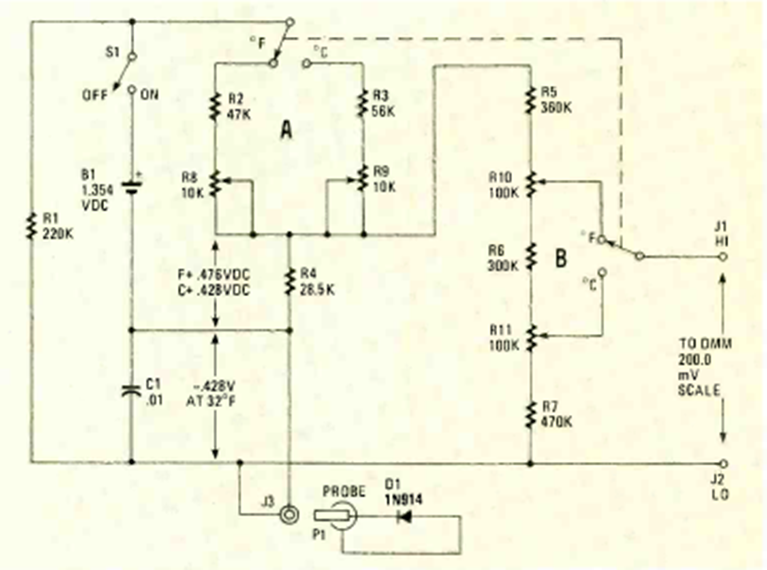

This circuit is used to sense temperatures in degrees Celsius and Fahrenheit. The circuit is from Special Projects from 1983 in Radio Electronics magazine.




| Clique na imagem para ampliar |
