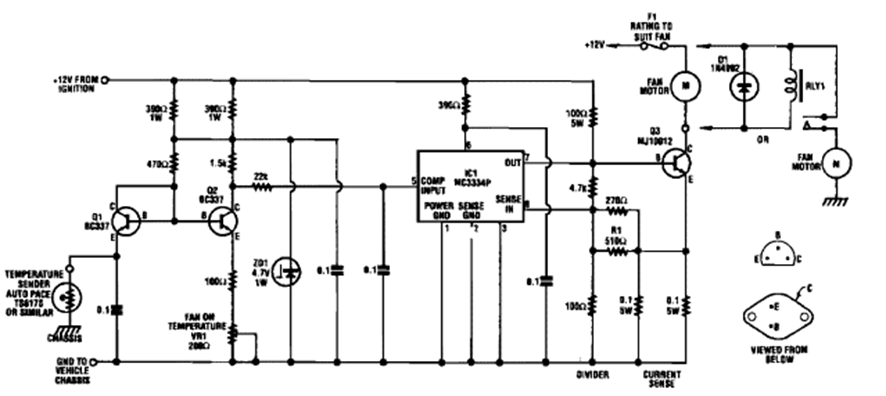

This circuit for cars with fans was found in Silicon Chips documentation from the 90s. It is used to activate the fan when the radiator water temperature rises.
| Clique na imagem para ampliar |
Automotive thermostat (CB26284E)
- Details
- Written by: Newton C. Braga
