Battery Charger (CB26303E)

Details
Written by: Newton C. Braga

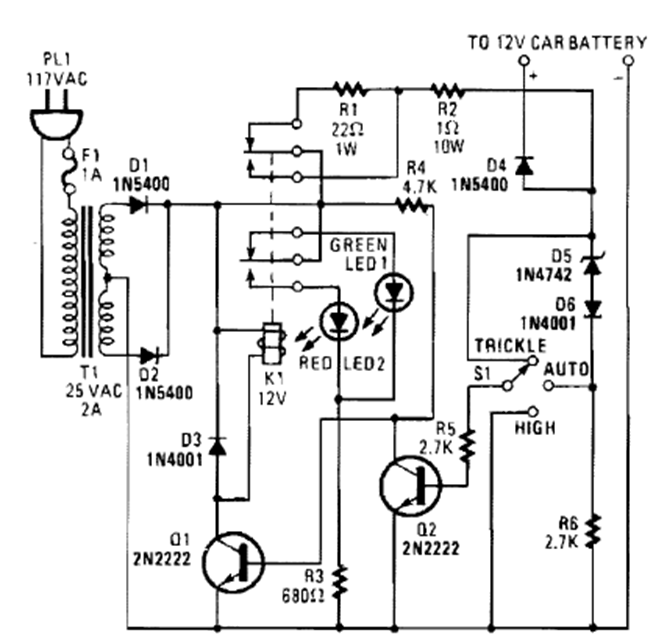

This automatic battery charger was found in a Popular Electronics from the 90s. The circuit uses a relay for automatic shutdown.
