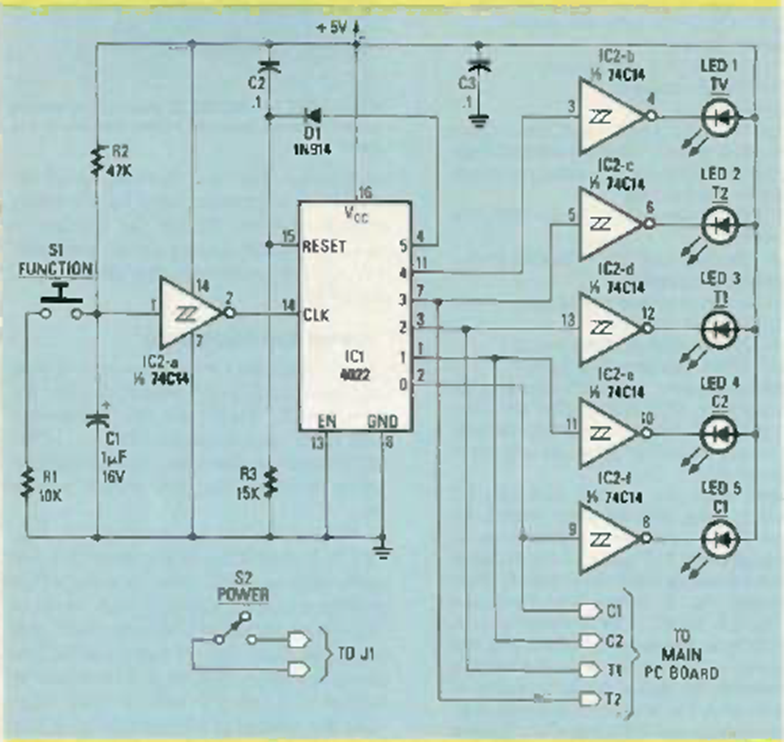

Found in the December 1986 issue of Radio Electronics magazine, this circuit is designed to select 4 outputs with pulses from a pressure switch. The circuit includes LED indication.
| Clique na imagem para ampliar |
Function selector (CB25012E)
- Details
- Written by: Newton C. Braga
