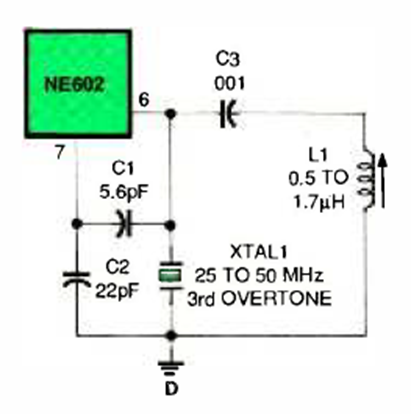

NE602 Crystal Oscillator (CB26005E)

This oscillator reaches 50 MHz with an overtone crystal. The circuit is from Electronics Now magazine from February 1997.
