SMD Photometer (CB26121E)

Details
Written by: Newton C. Braga

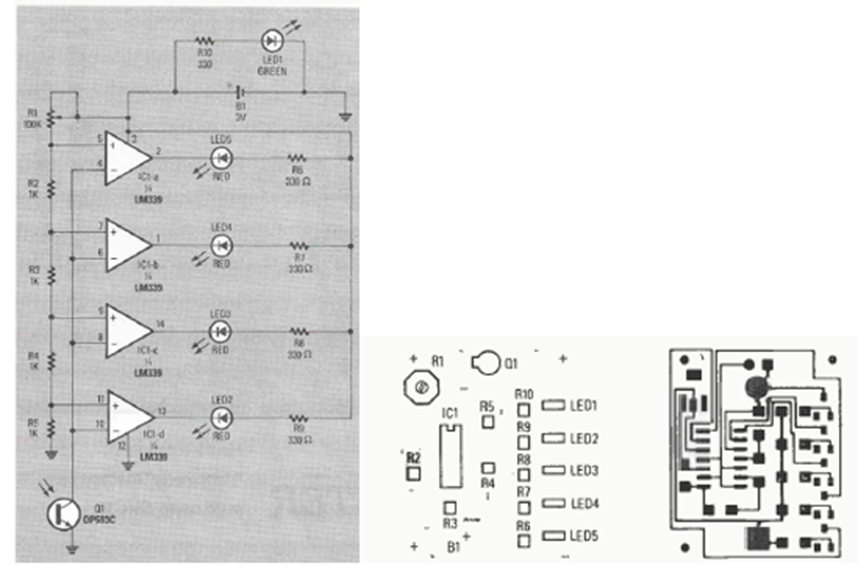

Found in the 1989 Radio Electronics Experimenter special edition, this circuit was designed for assembly with SMD components. The printed circuit board was provided.
