Touch Keyer (CB26322E)

Details
Written by: Newton C. Braga

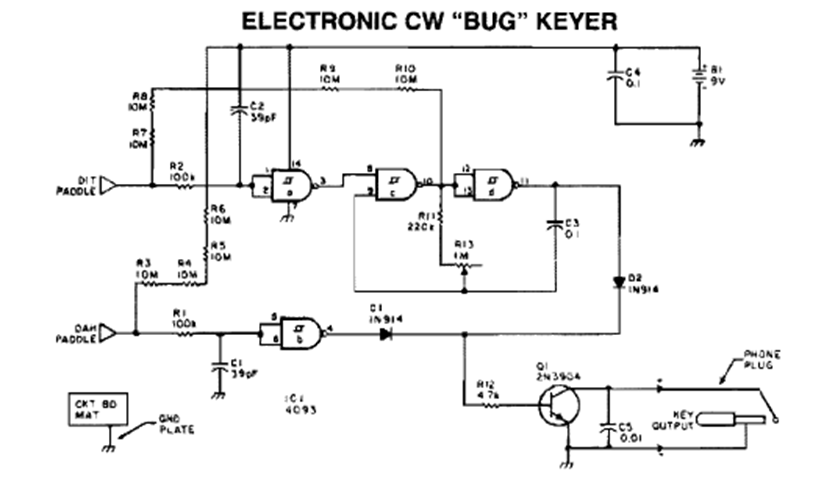

This CW circuit was found in a Radio Amateur Today from the 890s. The CMOS circuit must be powered by an isolated source and has different dash and dot timings.






| Clique na imagem para ampliar |
