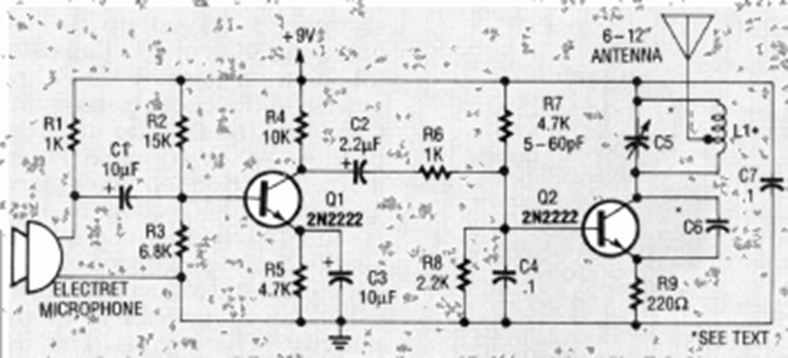

We found this circuit in the Electronics Experimenter Handbook magazine from 1993. L1 has 2 = 2 turns of 28 or 30 wire in the shape of 0.5 cm without core. The range reaches a few tens of meters.
| Clique na imagem para ampliar |
Small FM transmitter (CB26189E)
