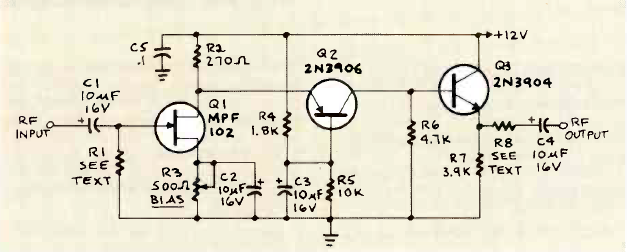

This circuit for RF signals was found in the March 1987 issue of Radio Electronics magazine. The transistors are general purpose for frequencies up to 3MHz. The circuit has a gain of approximately 30 dB.
Broadband Amplifier (CB25043E)
- Details
- Written by: Newton C. Braga
