Digital Wind Indicator (CB26069E)

Details
Written by: Newton C. Braga

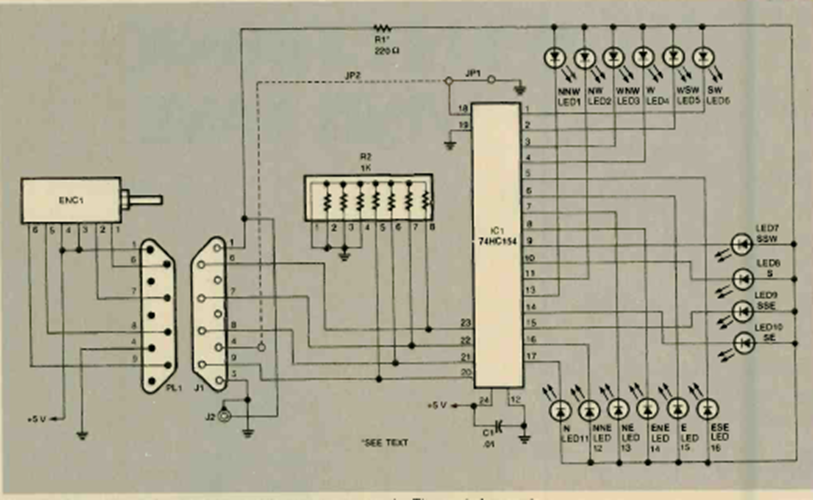

Found in the September 1998 issue of Electronics Now, this circuit uses an encoder with reed switches. The circuit indicates the position of a “indicator” and thus the direction of the wind.
