Battery Charge Indicator (CB26001E)

Details
Written by: Newton C. Braga

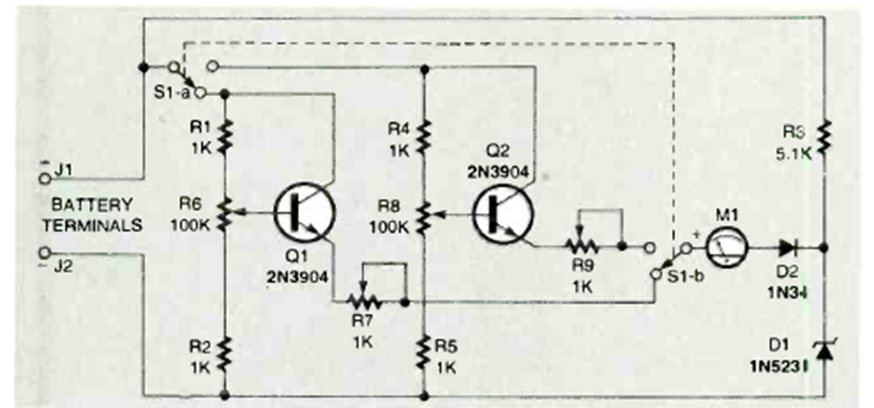

This circuit was found in an article in Electronics Now magazine from March 1997. The transistors are general purpose, and the indicator is a 1 mA full scale analog type.
