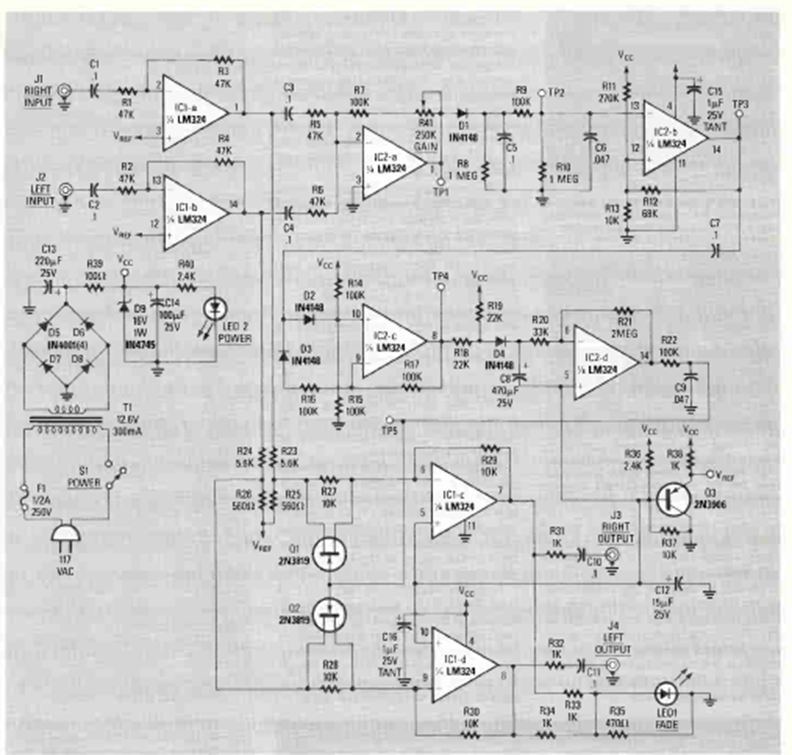

This circuit cuts the audio for a few seconds between words, which allows ads to be detected, since this does not occur in music. The circuit is a from Radio Electronics Experimenter from 1989.
