Automotive Regulator (CB26297E)

Details
Written by: Newton C. Braga

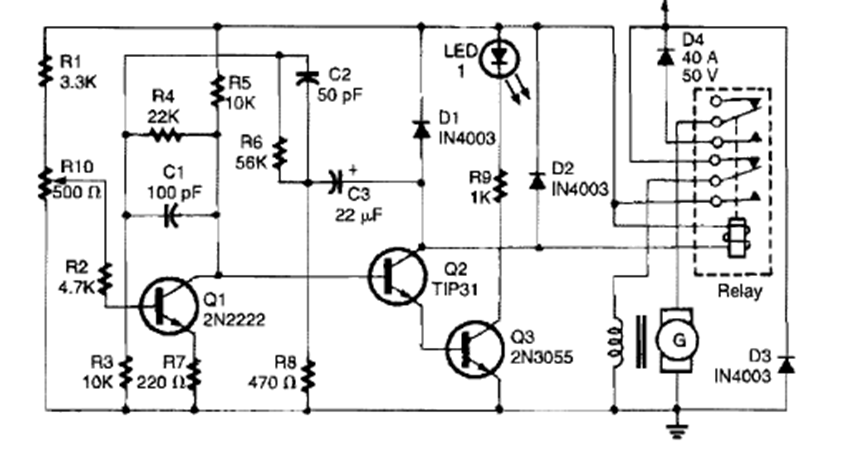

Found in a Radio Electronics store from the 90s, this circuit acts on the alternator. The circuit uses a 2N3055 that must be equipped with a good heat sink.
