Simple Hybrid Switching Power Supply (CB26022E)

Details: Written by: Newton C. Braga

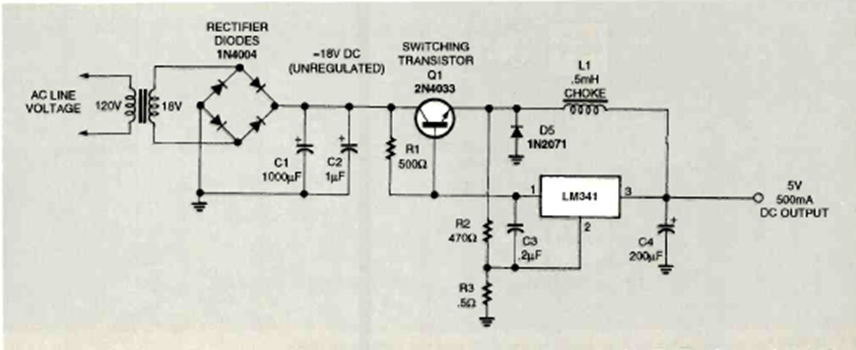

This hybrid power supply circuit was found in the August 1997 issue of Electronics Now magazine. The power transistor and the integrated circuit must be provided with heat sinks.

| Clique na imagem para ampliar |
