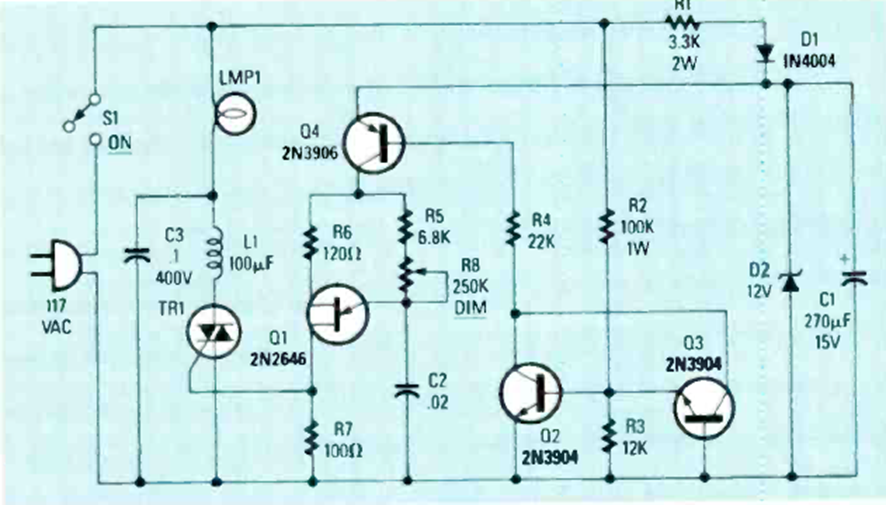

The circuit is from a Radio Electronics magazine from October 1987. The Triac must be equipped with a heatsink and the transistors are general purpose.
| Clique na imagem para ampliar |
Dimmer with UJT and Traic (CB25086E)
- Details
- Written by: Newton C. Braga
