Video Fadder (CB25999E)

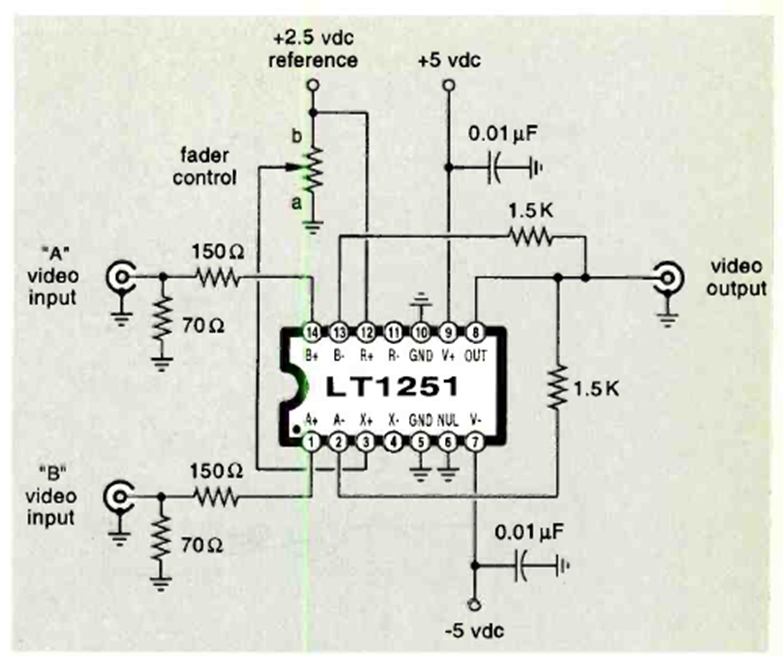

This analog video fader circuit smoothly transitions between two signals. It was found in the April 1997 issue of Electronics Now.

| Clique na imagem para ampliar |

Automatic garage light (CB7503E)
We found this circuit in a 1960 Sylvania transistor manual. The relay can be 12 V and C1...
Intermittent Oscillator or Siren (CB18276E)
The basic siren configuration shown in figure 1 activates a piezoelectric transducer and can be...
Divide-by-2 Counter - 4018 (CB164E)
One flip-flop of the 4018 can be used as a frequency divider or counter as shown here. Frequency...
