Controlling triacs with the LM3914 (CB26040E)

Details
Written by: Newton C. Braga

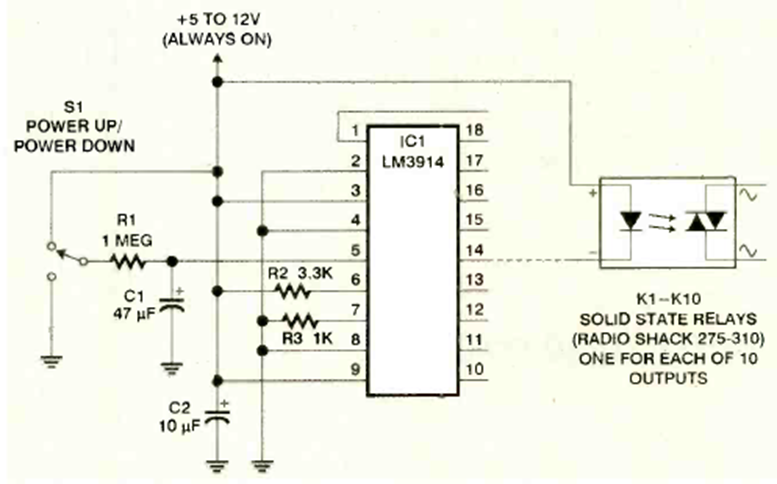

The figure shows a circuit that shows how to control an optodiac to trigger a triac from the LM3914 gates. The circuit is from an Electronics Now issue from February 1998.
