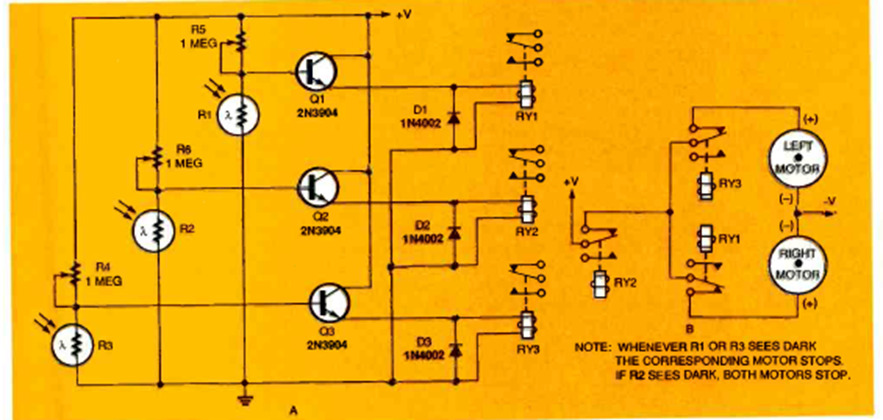

We found this circuit in the October 1996 Electronics Now magazine. The circuit uses LDRs as sensors and drives relays. The relays must have voltages according to the power supply.
| Clique na imagem para ampliar |
Laser Motor Control (CB25981E)
- Details
- Written by: Newton C. Braga
