VFO Amplifier (CB26317E)

Details
Written by: Newton C. Braga

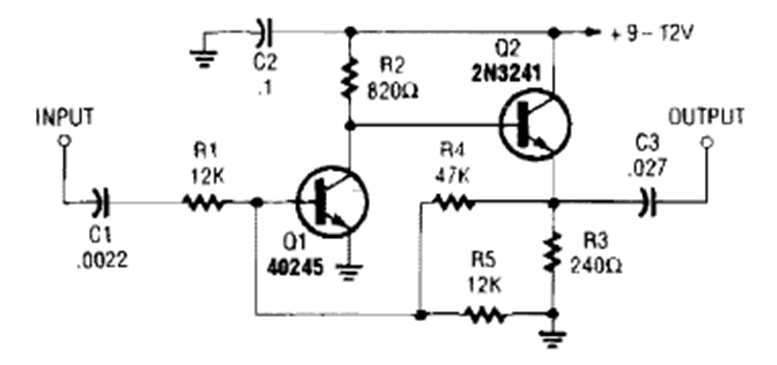

This circuit was found in a Popular Electronics from the 90s. The transistors are general purpose, and the gain depends on the ratio between R2 and R1.




| Clique na imagem para ampliar |
