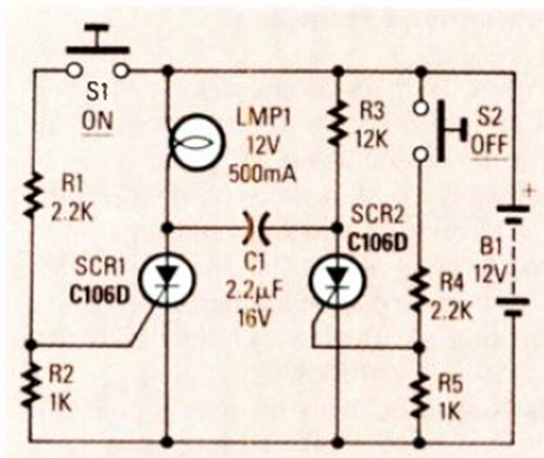

This SCR shutdown circuit uses a second SCR in a capacitor configuration to short the anode and cathode. The circuit is from a September 1987 Radio Electronics.
Dual SCR Shutdown (CB25064E)
- Details
- Written by: Newton C. Braga
This SCR shutdown circuit uses a second SCR in a capacitor configuration to short the anode and cathode. The circuit is from a September 1987 Radio Electronics.
