Mouse Circuit (CB26039E)

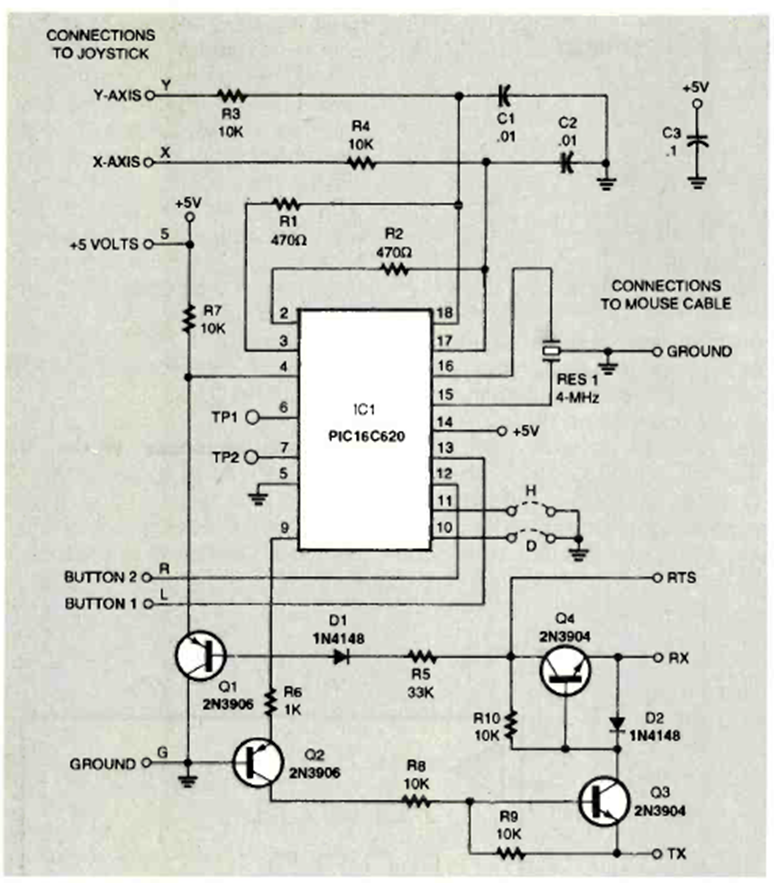

This mouse circuit was found in the January 1997 issue of Electronics Now magazine. It uses a PIC that must be programmed according to the movements.

| Clique na imagem para ampliar |

Two-Phase Oscillator (CB117)
The circuit shown here uses a 4047 to produce three signals whose frequencies are determined by C...
Capacitance Bridge (CB22019E)
We found this circuit in an old English publication. The resistor not indicated can be 2k2 and the...
Variable Notch Filter (CB20082E)
This circuit was found in documentation from the 1980s. The integrated circuit used is uncommon today...
