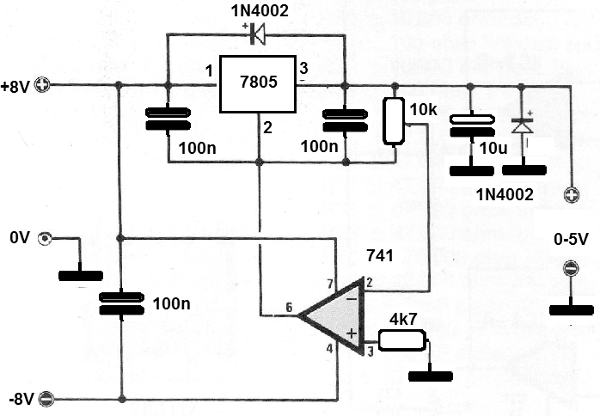

This variable power supply uses common components and can supply a current up to 1 A. The integrated voltage regulator circuit must be mounted on a heatsink. The circuit is from an Italian publication of 1994. Some changes in the original circuit were necessary to make possible its assembly with current components. The input is made by a symmetrical source of 8 V.
