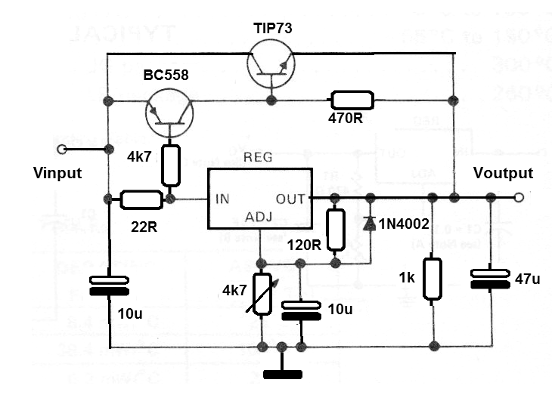

This circuit is in the very datasheet of Texas Instruments that manufactures the component equivalent to LM317. The integrated circuit shall be fitted with a heatsink as well as the power transistors. The load current must be at least 50 mA, determined by the valueless resistor in the diagram.
