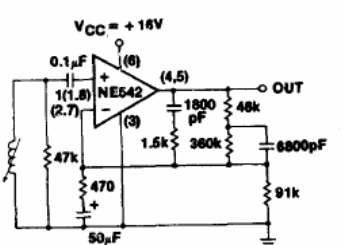

This circuit is from the Philips integrated circuits manual of 1990. It is intended for magnetic turntable capsules, and the numbers in parentheses are for another channel. Signal cables must be shielded to avoid noise pickup.
