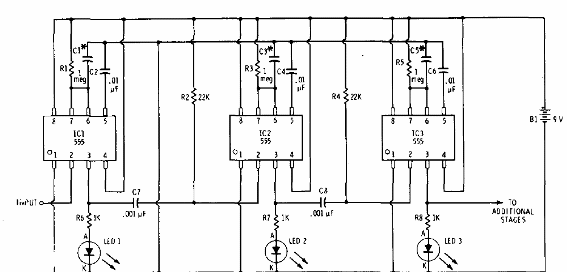

We found this configuration in a Radio Shack documentation from 1977. Here we have the way to connect 3 or more 555 monostable for sequential drive. When timing of one ends, timing of the next begins and so on. The timing is monitored by LEDs.
