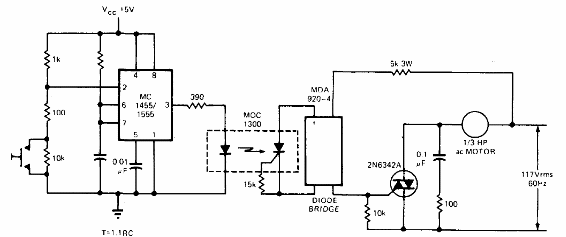

The circuit shown timing the drive of a motor using an optical coupler. The diode bridge can be made with 1N4148 diodes and the Triac can be of the TIC series according to the motor power. The circuit is from 1973 Motorola documentation. Equivalent optical couplers may be used.
