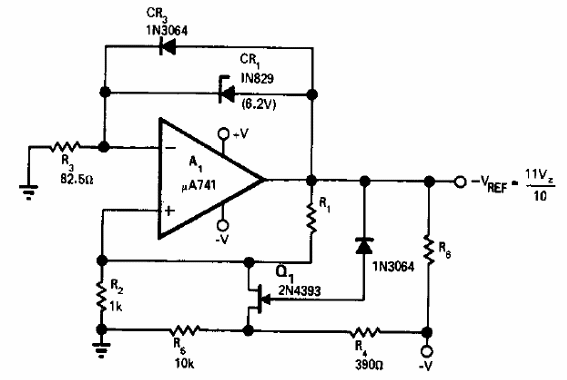

The FET of this circuit of a 1971 publication may be the BF245. The circuit serves as a voltage reference with an output given by the formula next to the diagram. The power supply must be symmetrical.
Auto Stabilized Zener using the 741 (CB1283E)
- Details
- Written by: Newton C. Braga
