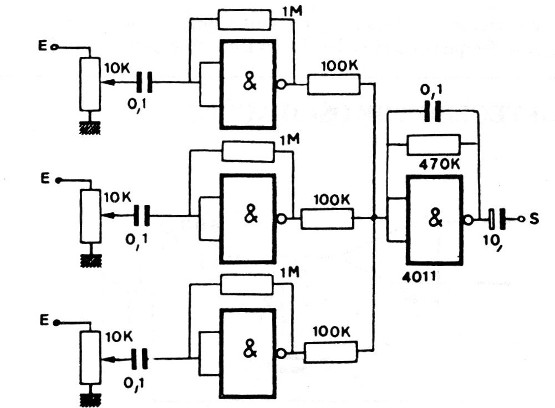

This configuration of the 1980s uses NAND A-type CMOS ports, which have a linear response with feedback resistors. The circuit is documentation from the 80's. The power can be made with voltages from 3 to 15 V and the signal cables must be shielded.
CMOS Mixer (CB1290E )
- Details
- Written by: Newton C. Braga
